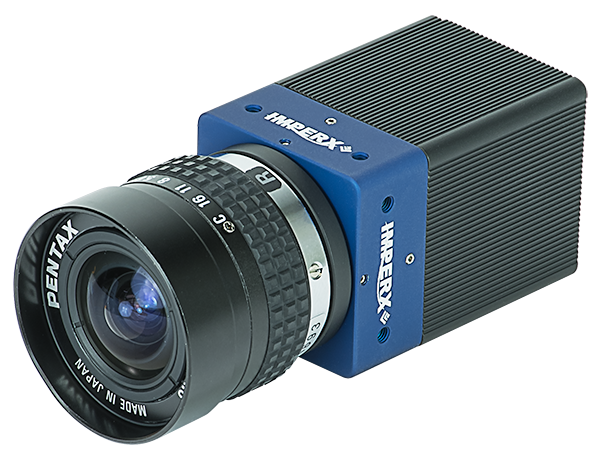

24.6 MP CMOS Camera


The Imperx POE-C5310 camera provides exceptional video image quality with Imperx proprietary processing in a wide range of environments and conditions. The POE-C5310’s  flexibility, image quality, and speed make it suitable for a broad range of diverse and demanding applications, but “one size doesn’t fit all,” and Imperx can help optimize the camera to your exact requirements. In addition, Imperx puts you in control and gives you full access to raw data without corrections. Using the simple, intuitive graphical user interface, you can quickly apply image corrections, if desired.

The POE-C5310 features the Sony Pregius STM IMX540 Global Shutter CMOS image sensor with a native resolution of 5328 x 4608 in a 1.2” optical format delivering up to 4.9 frames per second with GigE Vision® Power over Ethernet (PoE) output. The Pregius S technology uses a stacked back-illuminated pixel structure offering reduced pixel size, increased peak quantum efficiency, and improved sensitivity with fast lenses. CMOS technology eliminates smear columns from areas of ultra-bright intensity and specular reflections in uncontrolled lighting applications. The camera has excellent sensitivity, fast frame rates, exceptional dynamic range and supports strobe outputs, trigger inputs, automatic exposure, automatic gain control with multiple LUTs, and other high-value functions.


  • Sony Pregius S IMX540 Global Shutter CMOS image sensor
  • Native resolution of 5328 x 4608
  • 1.2"  optical format
  • Delivering up to 4.9 frames per second
  • GigE Vision® with Power over Ethernet (PoE)



To create your own custom Cheetah ordering code, simply choose one element from each option.
Sample Ordering Code: POE-C5310M-RC000 – Monochrome, Ruggedized, C-Mount Lens, No filter option

Interface: POE – GigE Vision® with Power over Ethernet
Camera Number: C5310
Sensor Type: M – Monochrome | C – Color
Environmental: R – Ruggedized (Standard)
Lens: C – C (Default) | S – CS (Optional) | I – P-Iris C (Optional) | A – P-Iris CS (Optional)

Power Supply (sold separately)
PS12V14A – Power Supply w/ 1 input and 1 output
PS12V18A – Power Supply w/ 1 input, 1 output, and a P-Iris connector

Cables (sold separately)
CBL-PWIO01 – Cable Power; Hirose 12p (F) to loose end; 2m – Camera Power Hirose Connection

For additional features including, no cover glass, tape cover glass, as well as filter options, contact IMPERX: +1-561-989-0006 or [email protected].

Product Registration

Upon purchase of your new IMPERX product, please register at Products Registration Page.
Once registered, proceed to the subscribers products download area in order to download installation files.

Software & Documentation

Software, User Manuals, Application Notes and QuickStart updates are available on the Product Download Page.
