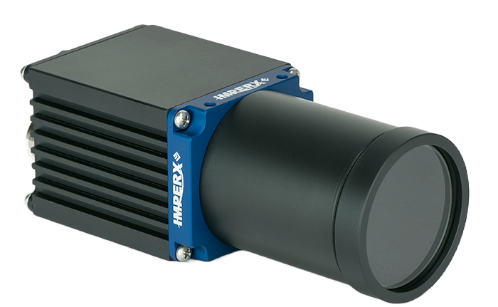

When it comes to find the perfect camera for an Automation application, Imperx Automation cameras are the clear first choice. Imperx Automation cameras include a wide spectrum of cameras from VGA to 47 megapixels. Our small resolution cameras are optimized for anything from the standard Machine Vision and Production Lines to the most demanding Automation applications. Don't let our cameras’ tiny design fool you, this powerful imaging tool is capable of integrating with any PLC, provides pre-processing to assist any software and has a dual clock design to gain more speed and efficiency. Whether the application is bottling plant in TX, USA, pharmaceuticals in Seattle, WA or LCD inspection in Stuttgart, DE, Imperx Automation cameras are built to last and to outperform other inferior products in the marketplace. Built in the USA!
Imperx Automation cameras are available in Gigabit Ethernet (GigE Vision®) with Power over Ethernet (PoE) as the latest in common standards providing up to 100 meters of distance and Camera Link® with Power over Camera Link® (PoCL) for larger bandwidth needs. Both of the standards provide power and data over a single cable.
Imperx’s Tiger, Cheetah and Bobcat 2.0 are advanced, rugged and extremely programmable camera lines manufactured with the Automation markets in mind. Imperx CCD cameras are fully programmable using the easy-to-use Imperx camera configuration software. The cameras provide many ways to trigger the camera and synchronize it to external lighting, events or other cameras. The remarkable Imperx Tiger cameras use larger, faster sensors (4/3” to 57mm optical formats) and advanced processing technology to meet ever more demanding applications. Camera resolutions include 47, 29, 16, 8.6, 8, and 4 megapixels and offer a broad range of frame rates. Ruggedized and Industrial versions assure performance and value.
Imperx CMOS Cheetah cameras give you control over your imaging with a wide range of models, features, and programming options, perfect for all of your Automation imaging needs. Advanced CMOS technology and Imperx engineering expertise provision cameras with excellent uniformity for the highest levels of image quality, unique features like wide dynamic range, flexible trigger/strobe options, and a choice of Camera Link™, USB3 Vision™, GigE Vision™, and 3G-SDI interfaces.
Imperx Automation cameras feature a thermally optimized design, 14-bit internal data processing, 8, 10, 12 or 14-bit selectable output, low noise and greater than 60dB dynamic range. Imperx uses interline transfer CCD sensors and are available in color, monochrome and TRUESENSE Sparse CFA options.
All Imperx Automation cameras use industrial grade components assuring dependable use with an extended temperature range of -40˚C to +85˚C and shock/vibration performance of >1000G/100G. The Imperx design is a MIL SPEC 810F product and has a certification of MTBF of > 660,000 hours @ 40˚C (Telcordia SR-332). The extremely low power and small design is effective in small spaces. Imperx offers selectable mount options to support almost any lens in the market.
Programmable I/O’s
Imperx Automation cameras have 4 inputs and 2 outputs, which are completely configurable for any application. Imperx Automation cameras have been designed to easily integrate into any Automation or Factory Line with features such as programmable delay of trigger, programmable amount of exposures per trigger, delay of trigger and/or strobe, alternating exposures and more. This type of programmability allows for easy integration even in the most challenging production lines and automation applications.
Extended Temperature Range/Lifespan
Imperx Automation cameras are manufactured with industrial grade components, which provide confidence that the cameras will always be running. Many Automation and Factory applications require rugged components that can withstand extreme temperatures and environments. Imperx cameras have an MTBF > 660,000 hours @ 40˚C. This certification provides the security that a production line will not stop due to the camera failing. In addition, OEMs can be reassured that support will not be required due to the camera whether around the block or on the other side of the world.
Fast Acquisition
Imperx Automation cameras include an overclocked mode, which will provide a speed improvement of 20%. Imperx Automation cameras also include multiple Regions of Interest for the ability to increase the speed by removing the region or regions that do not need to be imaged. With multiple ROI's, the camera is capable of increasing the overall data rate by not sending unwanted data. There are 7 programmable ROIs that can image an area as small as 2x2 to the entire imager. Lastly, with 'Fast Triggering Mode,' the camera can trigger at the full frame rate for perfect synchronization for any Automation application.
Camera Features:
- 8, 10, 12 or 14-bit selectable output, 24-bit RGB
- Programmable exposure with 1 µs precision
- Auto Exposure/Auto Gain
- 7 programmable Regions of Interest
- Auto-iris
- Iris, Focus, Zoom motorized lens control
- Multiple triggering modes, PIV support
- 12-bit LUTs
- Auto White Balance
- MTBF > 660,000 hours @ 40˚C
- Up to 4 inputs, 2 outputs
- Up to 8x horizontal & vertical binning
- Operating temperature -40˚C to +85˚C
- Shock > 1000g, Vibration > 100g
- Auto Tap Balance & Pixel Correction
Imperx Line Of Inspection Cameras
Contact Imperx for detailed specifications on these or other camera models.)
CCD Cameras For Machine Vision Systems
NEW Tiger Series ** THESE PRODUCTS ARE NOT RECOMMENDED FOR NEW DESIGNS. Last time buy: Feb. 15, 2020.
| Model | Megapixel | Resolution | Sensor | Optical | FPS | Available Interfaces |
|---|---|---|---|---|---|---|
| T2040 | 4 MP | 2048 x 2048 | KAI-04070 | 4/3" | 34 | Camera Link® Medium, CoaXPress |
| T3340 | 8 MP | 3296 x 2472 | KAI-08051 | 4/3" | 21 | Camera Link® Medium, CoaXPress |
| T3640 | 8.6 MP | 3600 x 2400 | KAI-08670 | APS-H | 15 | Camera Link® Medium, CoaXPress |
| T4840 | 16 MP | 4880 x 3232 | KAI-16070 | 35mm | 7.9 | Camera Link® Medium, CoaXPress |
| T4940 | 16 MP | 4896 x 3264 | KAI-16050 | APS-H | 8.8 | Camera Link® Medium, CoaXPress |
| T6640 | 29 MP | 6576 x 4384 | KAI-29050 | 35mm | 4.9 | Camera Link® Medium, CoaXPress |
| T6641 | 29 MP | 6576 x 4384 | KAI-29052 | 35mm | 4.9 | Camera Link® Medium, CoaXPress |
| T8040 | 43 MP | 8064 x 5360 | KAI-43140 | 35mm | 2.7 | Camera Link®, Camera Link® Medium, CoaXPress |
| T8810 | 47 MP | 8856 x 5280 | KAI-47051 | 645 (1.1x) | 3.2 | Camera Link® Medium |
| T8820 | 47 MP | 8856 x 5280 | KAI-47051 | 645 (1.1x) | 6.5 | Camera Link® Full |
| T9040 | 50 MP | 10440 x 5280 | KAI-50140 | 51.7mm | 4 | Camera Link® Medium, CoaXPress |
Bobcat Series ** THESE PRODUCTS ARE NOT RECOMMENDED FOR NEW DESIGNS. Last time buy: Feb. 15, 2020.
| Model | Megapixel | Resolution | Sensor | Optical | FPS | Available Interfaces |
|---|---|---|---|---|---|---|
| B1410 | 1.4 MP | 1360 x 1024 | ICX-285 | 2/3" | 30 | GigE, PoE, Camera Link® Base, CoaXPress |
| B1922 | 2 MP | 1940 x 1460 | ICX-674 | 2/3" | 25 | GigE, PoE, Camera Link® Base, HD-SDI, CoaXPress |
| B1942 | 2 MP | 1940 x 1460 | ICX-674 | 2/3" | 54 | Camera Link® Medium |
| B2020 | 4 MP | 2048 x 2048 | KAI-04022 | 4/3" | 20 | GigE, PoE, Camera Link® Base, CoaXPress |
| B2021 | 4 MP | 2048 x 2048 | KAI-04070 | 4/3" | 17 | GigE, PoE, Camera Link® Base, CoaXPress |
| B2041 | 4 MP | 2048 x 2048 | KAI-04070 | 4/3" | 34 | Camera Link® Medium |
| B2320 | 4 MP | 2336 x 1752 | KAI-04050 | 1.0" | 21 | GigE, PoE, Camera Link® Base, CoaXPress |
| B2340 | 4 MP | 2336 x 1752 | KAI-04050 | 1.0" | 41 | Camera Link® Medium |
| B2520 | 5 MP | 2448 x 2050 | ICX-625 | 2/3" | 16.0 | GigE, PoE, Camera Link® Base, CoaXPress |
| B2720 | 6 MP | 2750 x 2200 | ICX-694 | 1.0" | 12.7 | GigE, PoE, Camera Link® Base, CoaXPress |
| B2740 | 6 MP | 2750 x 2200 | ICX-694 | 1.0" | 25.4 | Camera Link® Medium |
| B3320 | 8 MP | 3296 x 2472 | KAI-08050 | 4/3" | 10.6 | GigE, PoE, Camera Link® Base, CoaXPress |
| B3340 | 8 MP | 3296 x 2472 | KAI-08050 | 4/3" | 21 | Camera Link® Medium |
| B3420 | 9 MP | 3388 x 2712 | ICX-814 | 1.0" | 8.6 | GigE, PoE, Camera Link® Base, CoaXPress |
| B3440 | 9 MP | 3388 x 2712 | ICX-814 | 1.0" | 17.2 | Camera Link® Medium |
| B4821 | 16 MP | 4896 x 3264 | KAI-16050 | 32.36mm | 4.2 | GigE, PoE, Camera Link® Base, CoaXPress |
| B4822 | 16 MP | 4864 x 3232 | KAI-16070 | 43mm | 4.1 | GigE, PoE, Camera Link® Base, CoaXPress |
| B4841 | 16 MP | 4896 x 3264 | KAI-16050 | 32.36mm | 8.8 | Camera Link® Medium |
| B4842 | 16 MP | 4864 x 3232 | KAI-16070 | 43mm | 7.9 | Camera Link® Medium |
| B6620 | 29 MP | 6576 x 4384 | KAI-29050 | 43mm | 2.4 | GigE, PoE, Camera Link® Base, CoaXPress |
| B6640 | 29 MP | 6576 x 4384 | KAI-29050 | 43mm | 4.7 | Camera Link® Medium |
CMOS Cameras For Automation Systems
| Model | Megapixel | Resolution | Optical | Sensor | FPS | Available Interfaces |
|---|---|---|---|---|---|---|
| C1911-PoE | 2.86 MP | 1944 x 1472 | IMX-429 | 2/3" | 40 | GigE Vision® (GigE) w/ PoE |
| C1911-SDI | 2 MP | 1920 x 1080 | IMX-429 | 1/1.58" | 60 | 3G-SDI, HD-SDI |
| C1920 | 2 MP | 1920 x 1080 | IMX-174 | 1/1.2" | 60 | 3G-SDI, HD-SDI |
| C2000 | 3 MP | 2064 x 1544 | IMX-265 | 1/1.8" | 36 | PoE |
| C2010 | 2 MP | 1920 x 1080 | IMX-265 | 1/2" | 60 | 3G-SDI, HD-SDI |
| C2020 | 3.1 MP | 2064 x 1544 | IMX-255 | 1/1.8" | 148 | CameraLink® |
| C2400 | 5 MP | 2464 x 2056 | IMX-264 | 2/3” | 22 | PoE |
| C2420 | 5 MP | 2464 x 2056 | IMX-250 | 2/3" | 97 | CameraLink® |
| C4020 | 9 MP | 4112 x 2176 | IMX-255 | 1" | 57 | CameraLink® |
| C4120 | 12 MP | 4112 x 3008 | IMX-253 | 1.1" | 42 | CameraLink® |
| C4180 | 12 MP | 4096 x 3072 | NOIP1XX012KA | 4/3" | 67 | CameraLink®, PoCL, USB3 (U3V), GigE Vision (GigE) |
| C4410 | 20 MP | 4432 x 4436 | IMX-367 | 4/3" | 6 | GigE Vision® (GigE) w/ PoE |
| C4410-T | 20 MP | 4432 x 4436 | IMX-367 | 4/3" | 6 | GigE Vision® (GigE) w/ PoE |
| C4510 | 20.4 MP | 4512 x 4512 | IMX541 | 1.1" | 25.9 | CameraLink® |
| C5190 | 25 MP | 5120 x 5120 | NOIP1SXX25KA | APS-H | 80 | 4-channel CXP-6, CoaXPress® |
| C5310 | 24.6 MP | 5328 x 4608 | IMX540 | 1.2" | 21.7 | CameraLink® |
| C5311 | 16.2 MP | 5328 x 3040 | IMX542 | 1.1" | 32.6 | CameraLink® |
| C5410 | 17 MP | 5472 x 3084 | IMX-387 | 4/3" | 7 | GigE Vision® (GigE) w/ PoE |
| C5410-T | 17 MP | 5472 x 3084 | IMX-387 | 4/3" | 7 | GigE Vision® (GigE) w/ PoE |
| C6410 | 31 MP | 6480 x 4860 | IMX-342 | APS-C | 3.7 | GigE Vision® (GigE) w/ PoE |
| C6410-T | 31 MP | 6480 x 4860 | IMX-342 | APS-C | 3.7 | GigE Vision® (GigE) w/ PoE |
| C6420 | 31 MP | 6480 x 4860 | IMX-342 | APS-C | 17 | Camera Link® |
| C6420-T | 31 MP | 6480 x 4860 | IMX-342 | APS-C | 17 | Camera Link® |
| C9440 | 64 MP | 9344 x 7000 | GMAX3265 | 37.4 mm | 34.7 | 4-channel CXP-6 CoaXPress® |
Imperx: A Global Manufacturer & Supplier of Automation Cameras
Imperx Automation cameras are used throughout the world, including North America, Asia (China, Korea, Japan) Europe and India. Imperx Automation cameras are globally recognized for their rugged quality, high-resolution, high-speed and numerous programmable features. With 14 different output modes and numerous triggering choices, Imperx Automation cameras are the leading global choice for the most demanding commercial and industrial automation applications.
Imperx manufacturers rugged, heavy-duty Automation cameras for a variety of industrial, commercial, manufacturing & business applications including: flat panel inspection, flaw detection, automation and inspection, parcel sorting, web inspection, automated inspection, solar panel inspection, steel industry, automotive, machine vision, railroad inspection, packaging, food & packaging, pharmaceutical, electronics, optical inspection, LCD inspection (Dead Pixel cameras), line scan, and MORE. Our high resolution CCD and CMOS cameras are available with resolutions up to 47 megapixels, and are available with a variety of interfaces, including CameraLink, GigE, USB3 Vision, 3G-SDI, HD-SDI, and CoaXPress. Our built-in imaging processing, wide dynamic range, flexible trigger/strobe options, built-in programmable corrections, auto-exposure, auto-gain, auto-Iris control, and programmable exposure with precision up to one microsecond make Imperx high speed CCD and CMOS Industrial and Ruggedized Cameras the global choice for commercial Automation and industrial Automation applications.
